ProductsCEA ARC WELDING RANGE
CEA’s large variety of arc welding products are really dedicated to all industrial and professional applications for MMA, TIG, MIG-MAG and MIG PULSED welding, some of which are customized for complex automation and robotized procedures.

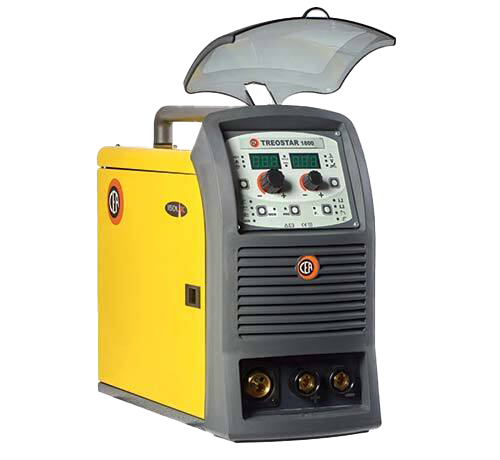

TREOSTAR
- Digital control of the welding parameters with synergic curves preset according to used type of material, gas and wire diameter
- Ability to store personalized welding parameters up to 99 JOBS
- Built-in polarity changeover facility for most common gas and gasless wires
- Smart “PROGRAM” key for quickly selecting any program
- Professional wire feeding mechanism with 37 mm large rolls
- Double groove rolls replaceable without any tool
- “Energy saving” function to operate the power source cooling fan only when necessary
- Possibility of using 300 mm Ø coils by means of the Retrofit Kit (optional)
- VRD – Voltage Reduction Device
FEATURES
vision.ARC

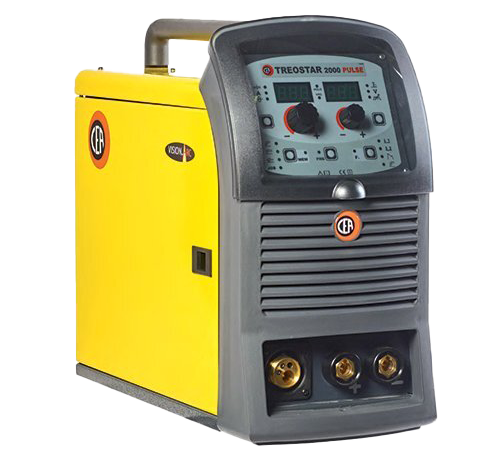

TREOSTAR PULSE
- Digital control of the welding parameters with synergic curves preset according to used type of material, gas and wire diameter
- Ability to store personalized welding parameters up to 99 JOBS
- Built-in polarity changeover facility for most common gas and gasless wires
- Smart “PROGRAM” key for quickly selecting any program
- Professional wire feeding mechanism with 37 mm large rolls
- Double groove rolls replaceable without any tool
- “Energy saving” function to operate the power source cooling fan only when necessary
- Possibility of using 300 mm Ø coils by means of the Retrofit Kit (optional)
- VRD – Voltage Reduction Device
FEATURES
vision.ARC
vision.PULSE
dual.PULSE

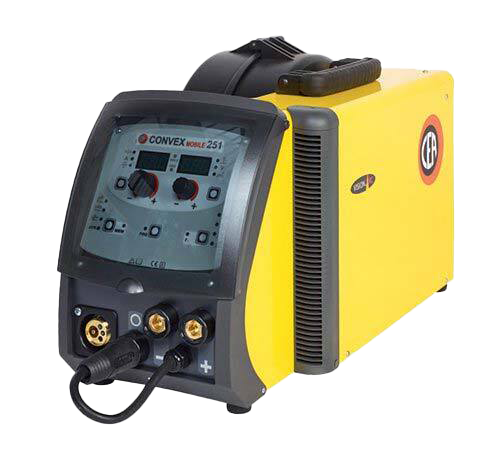

CONVEX MOBILE
- Digital control of the welding parameters with synergic curves preset according to used type of material, gas and wire diameter
- Ability to store personalized welding parameters up to 99 JOBS
- Built-in polarity changeover facility for most common gas and gasless wires
- Smart “PROGRAM” key for quickly selecting any program
- Professional wire feeding mechanism with 37 mm large rolls
- Double groove rolls replaceable without any tool
- “Energy saving” function to operate the power source cooling fan only when necessary
- Possibility of using 300 mm Ø coils by means of the Retrofit Kit (optional)
- VRD – Voltage Reduction Device
FEATURES
vision.ARC
vision.PULSE
dual.PULSE

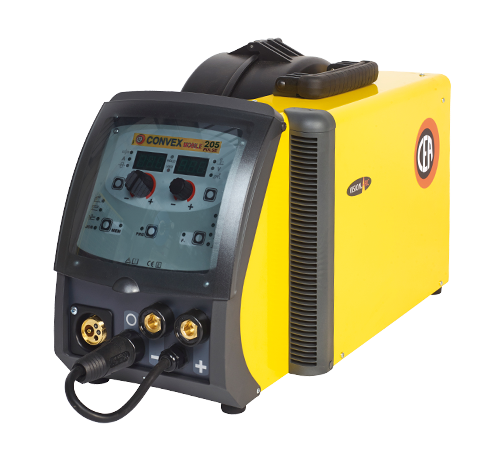

CONVEX MOBILE PULSE
- Digital control of the welding parameters with synergic curves preset according to used type of material, gas and wire diameter
- Ability to store personalized welding parameters up to 99 JOBS
- Built-in polarity changeover facility for most common gas and gasless wires
- Smart “PROGRAM” key for quickly selecting any program
- Professional wire feeding mechanism with 37 mm large rolls
- Double groove rolls replaceable without any tool
- “Energy saving” function to operate the power source cooling fan only when necessary
- Possibility of using 300 mm Ø coils by means of the Retrofit Kit (optional)
- VRD – Voltage Reduction Device
FEATURES
vision.ARC
vision.PULSE
dual.PULSE
SPECIAL PROCESSES
vision.COLD

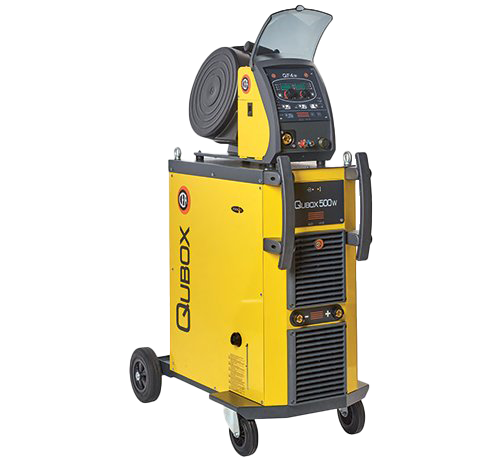

QUBOX PULSE
- Parameter control directly from the wire feeder
- Digital control of the welding parameters with synergic curves preset according to used type of material, gas and wire diameter
- Ability to store personalized welding parameters up to 99 JOBS
- Smart PROGRAM” key for quickly selecting any program
- Feeding mechanism with 4 rolls of large diameter for a precise and constant wire driving
- Double groove rolls replaceable without any tool
- “Energy saving” function to operate the power source cooling fan and torch water cooling only when necessary
- Excellent arc striking always precise and efficient
- Ability to partially or totally lock the equipment with access key by password
- Reduced energy consumption
- Troubleshooting auto-diagnosis feature
- Great robustness due to solid metallic main structure
- Control rack protection cover on the wire feeder
- Initial and final crater control
- VRD – Voltage Reduction Device
- Water cooling equipment integrated into the power source (W version)
FEATURES
vision.ARC
vision.PULSE
SPECIAL PROCESSES
vision.COLD
vision.ULTRASPEED
vision.POWER
vision.PIPE (On demand)

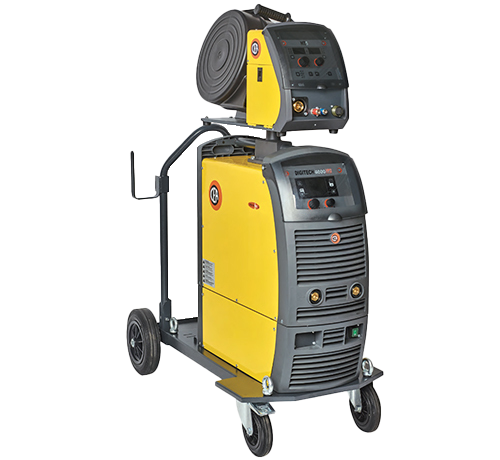

DIGITECH VP2
- Multiprocess equipment with exceptional performance in PULSED MIG, DUAL PULSED, MIG/MAG, MMA and TIG.
- Digital control of the welding parameters with preset synergic curves according to the type of material, gas and wire diameter being used vision.ARC2 guarantees a constant arc in all conditions and the perfect droplet detachment , mostly in PULSED MIG and DUAL PULSED, to achieve superior welding performances
- Interface with LCD colour display to keep under control the whole welding process
- Possibility of integrating special MIG and PULSED MIG welding processes
- Welding process always under control by means of the digital adjustment of all parameters
- User friendly and easy-to-use selection and recalling of the parameters and welding programs
- Ability to store personalized welding parameters up to 99 JOBS
- Excellent arc striking always precise and efficient
- Initial and final crater control
- Ability to partially or totally lock the equipment with access key by password
- Monitoring and repeatability of the welding parameters
- Low energy consumption
- “Energy Saving” function to operate the power source cooling fan and torch water cooling when necessary
- Welding parameter adjustments directly from up/down MIG torch
- Mains voltage fluctuation automatic compensation within +20% -20%
- Data storing and data printing ability (Optional)
- VRD Voltage Reduction Device for the operator’s maximum safety
FEATURES
vision.ARC2
vision.PULSE
dual.PULSE
SPECIAL PROCESSES
vision.COLD
vision.ULTRASPEED
vision.POWER
vision.PIPE
vision.PULSE-UP
vision.PULSE-RUN
vision.PULSE-POWER
