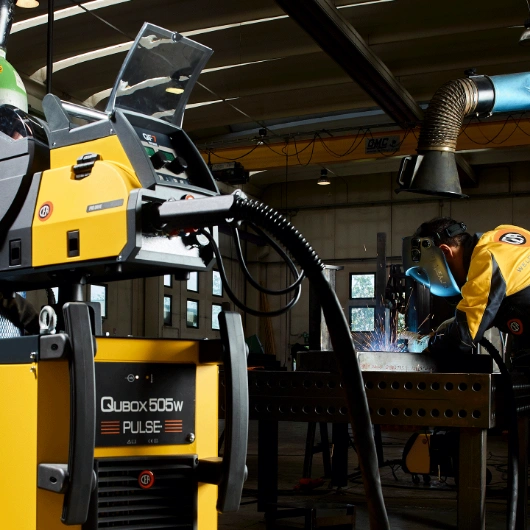

QUBOX / QUBOX PULSE
BACK TO WELD

SYNERGIC MULTIPROCESS INVERTER PULSE EQUIPMENT WITH SEPARATE WIRE FEEDER

QUBOX and QUBOX PULSE series multiprocess equipment are characterized by a synergic digital control and inverter technology integrated into a sturdy and functional metallic structure, with a separate wire feeder. Technologically advanced, robust and easy-to-use, they allow high quality welding in MMA, TIG with “Lift” mode, MIG-MAG and with the QUBOX PULSE models, also in PULSED MIG.
QUBOX

QUBOX PULSE

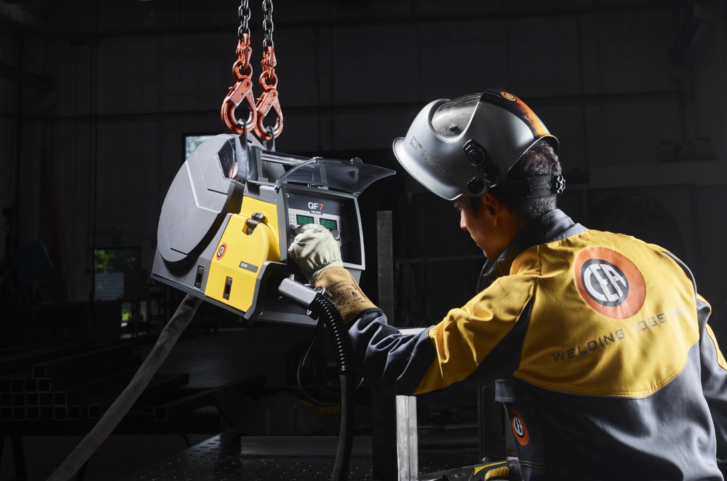

Full Synergic Control

The intuitive interface will all to less experienced operators to easily operate QUBOX and QUBOX PULSED equipment with a user-friendly welding parameters adjustment process. Once the wished program has been selected, the welding control automatically sets the best parameters based on the material type, wire diameter and gas being used.

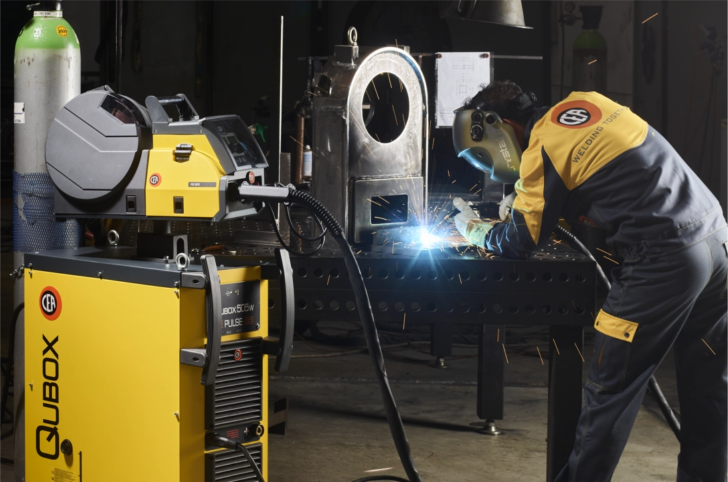

Professional and Strong

QUBOX and QUBOX PULSE are the best choice in all industrial fields for all qualified applications requiring high precision and repeatability of the welding results, such as medium and large fabrication work, shipyards and steel erection. QUBOX W and QUBOX W PULSE power sources are fitted with integrated

Other Characteristics
Digital control of the welding parameters with synergic curves preset.
Excellent arc striking
“Smart PROGRAM” key for quickly selecting any program.
Ability to partially or totally lock the equipment with access key by password
“Energy saving” to operate the power source cooling fan and torch water cooling only when necessary.
Initial and final crater control
Water cooling equipment integrated into the power source (W version)

Technical Features

Vision.Arc
Vision.Pulse
Mig Wire Feeder

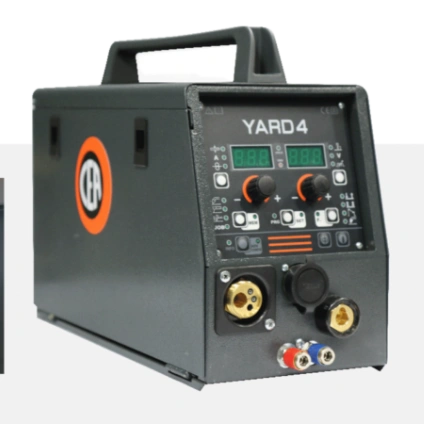

Wire Feeder Yard 4
FSC - Fast Start Control

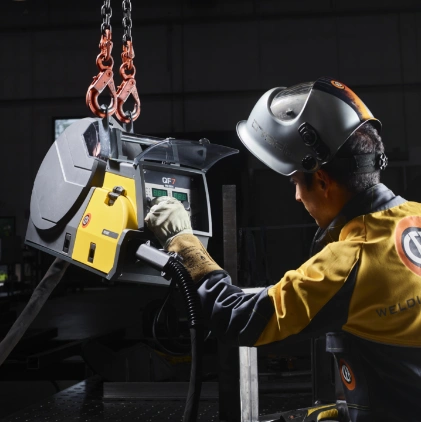

WIRE FEEDER QF7 W PRO DRIVE

STRONG INDUSTRIAL CASE made to last
PROFESSIONAL WIRE FEEDING mechanism with 4 rolls of large diameter for a precise and constant wire driving
DOUBLE GROOVE ROLLS replaceable without any tool
LODGING FOR WIRE SPOOLS up to Ø 300 mm
LED LIGHTE in the feeder compartment INSPECTION WINDOWS in the spool cover HK1 Hanging Kit (optional)
LONG INTERCONNECTING CABLE are available for QUBOX equipment in the air cooled version over 50 m
Gallery

Datasheet

QUBOX / QUBOX PULSE: Technical features

TECHNICAL DATA   QUBOX QUBOX PULSE
400 400 W 500 W 335 335 W 405 W 505 W
Three phase input 50/60 Hz V +20%
-20%
400 400
Input Power @ I2 Max kVA 22 22,5 29,5 18,5 22,5 29,5
Delayed Fuse (l eff) A 32 40 20 32 40
Power Factor / cos φ   0,70/0,99 0,75/0,99 0,65/0,99 0,70/0,99 0,75/0,99
Efficiency Degree   0,88 0,89 0,88 0,88 0,89
Open circuit voltage V 62 62 62 62 62
Current range A 10-400 10-500 10-330 10-400 10-500
Duty cycle at (40°C) A 100% 340 420 300 350 420
A 60%; 400 500 330 400 500
Wires Ø mm 0,6-1,6 0,6-1,6 0,6-1,6 0,6-1,6 0,6-1,6
Standards   EN 60974-1 • EN 60974-5 • EN 60974-10

Protection Class IP 23S 23S
Dimensions (LxWxH) mm 1030 x 950 x 515 1030 x 950 x 515
Weight kg 70 80 86 70 80 80 86
