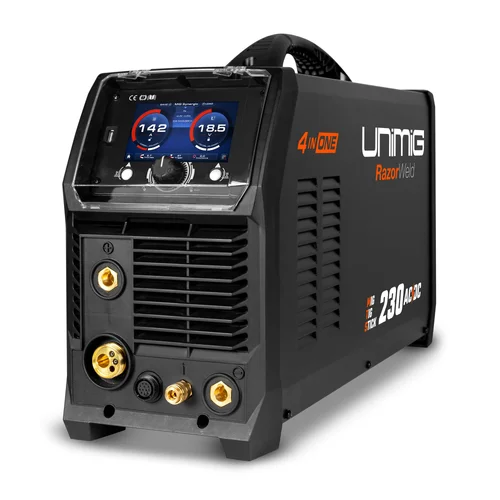

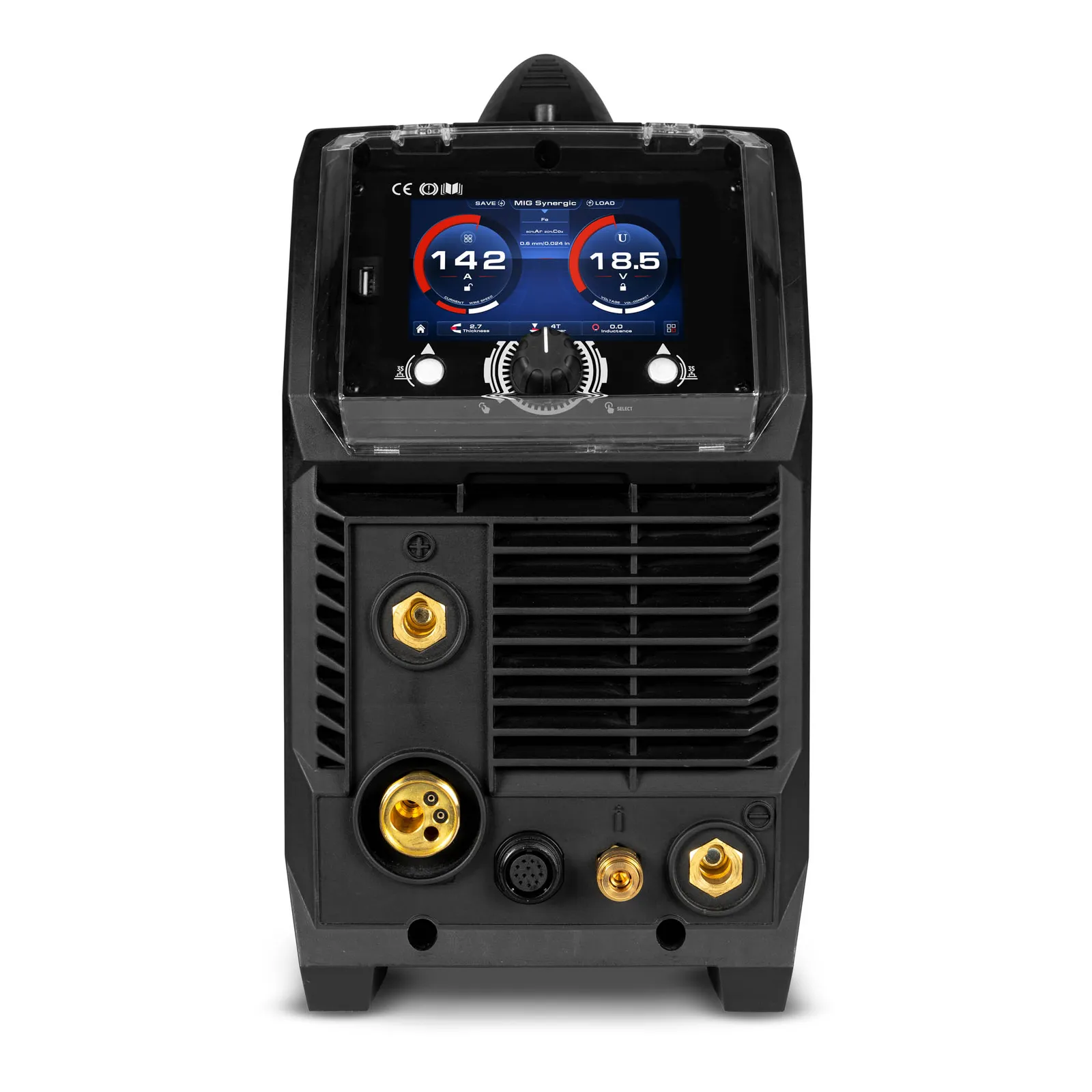

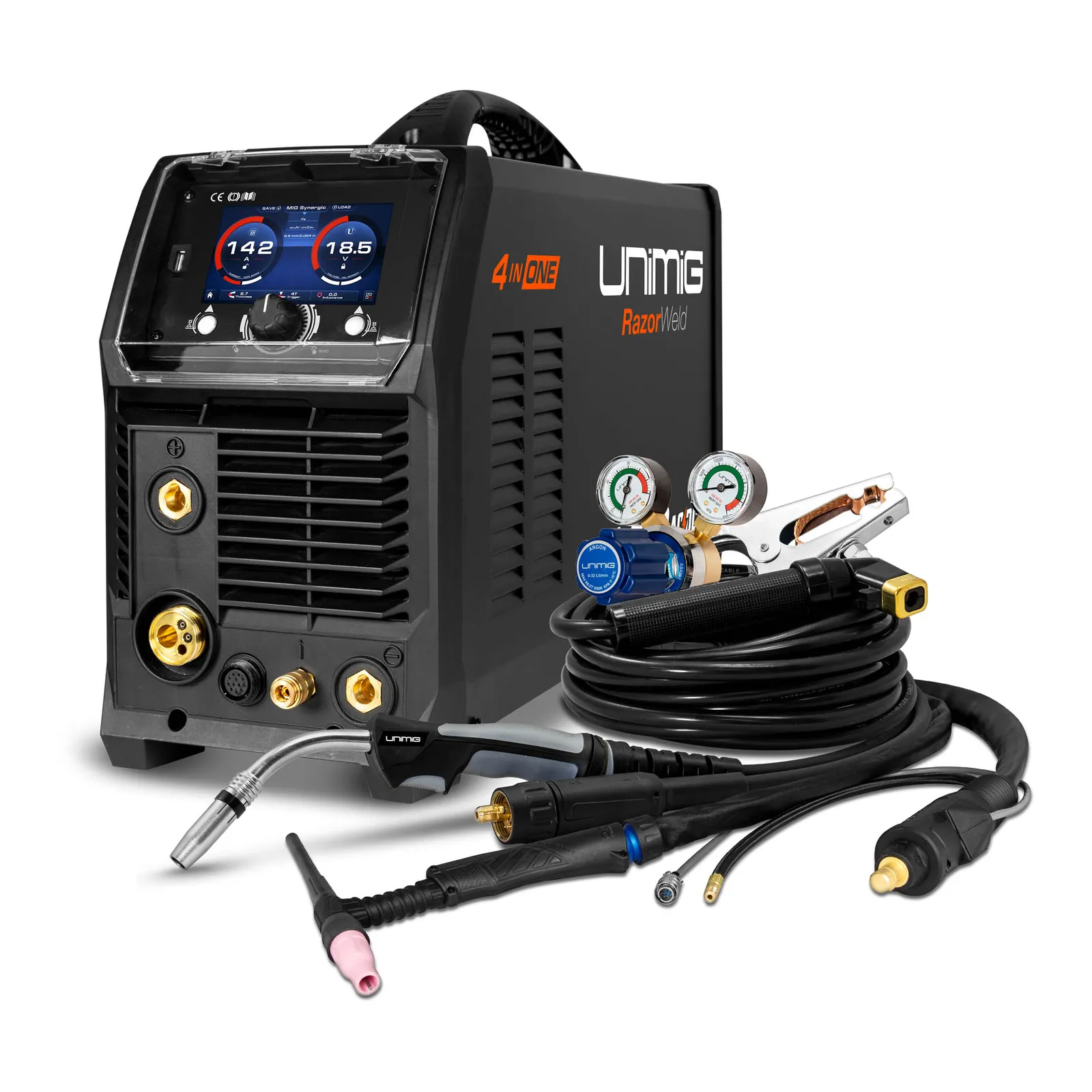

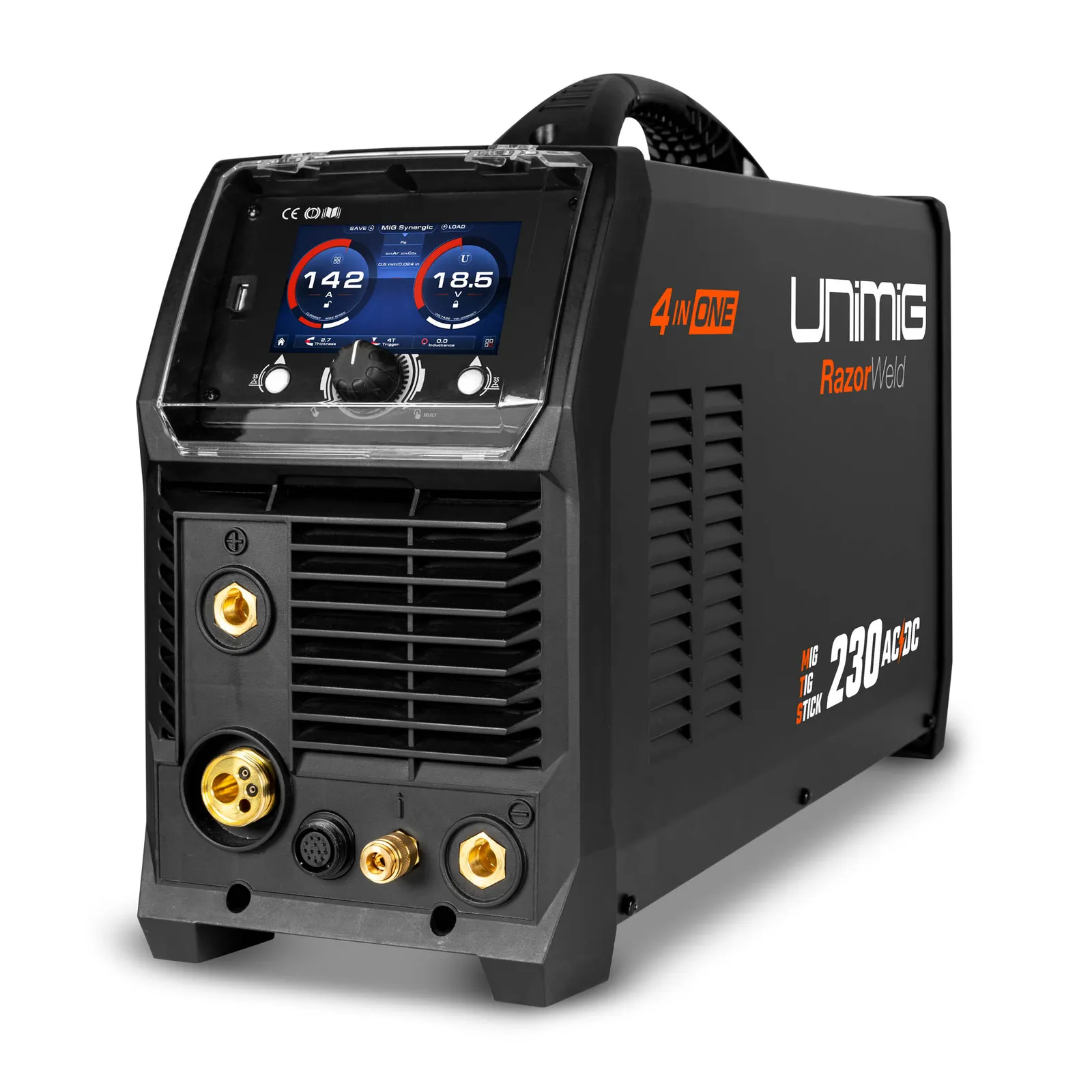

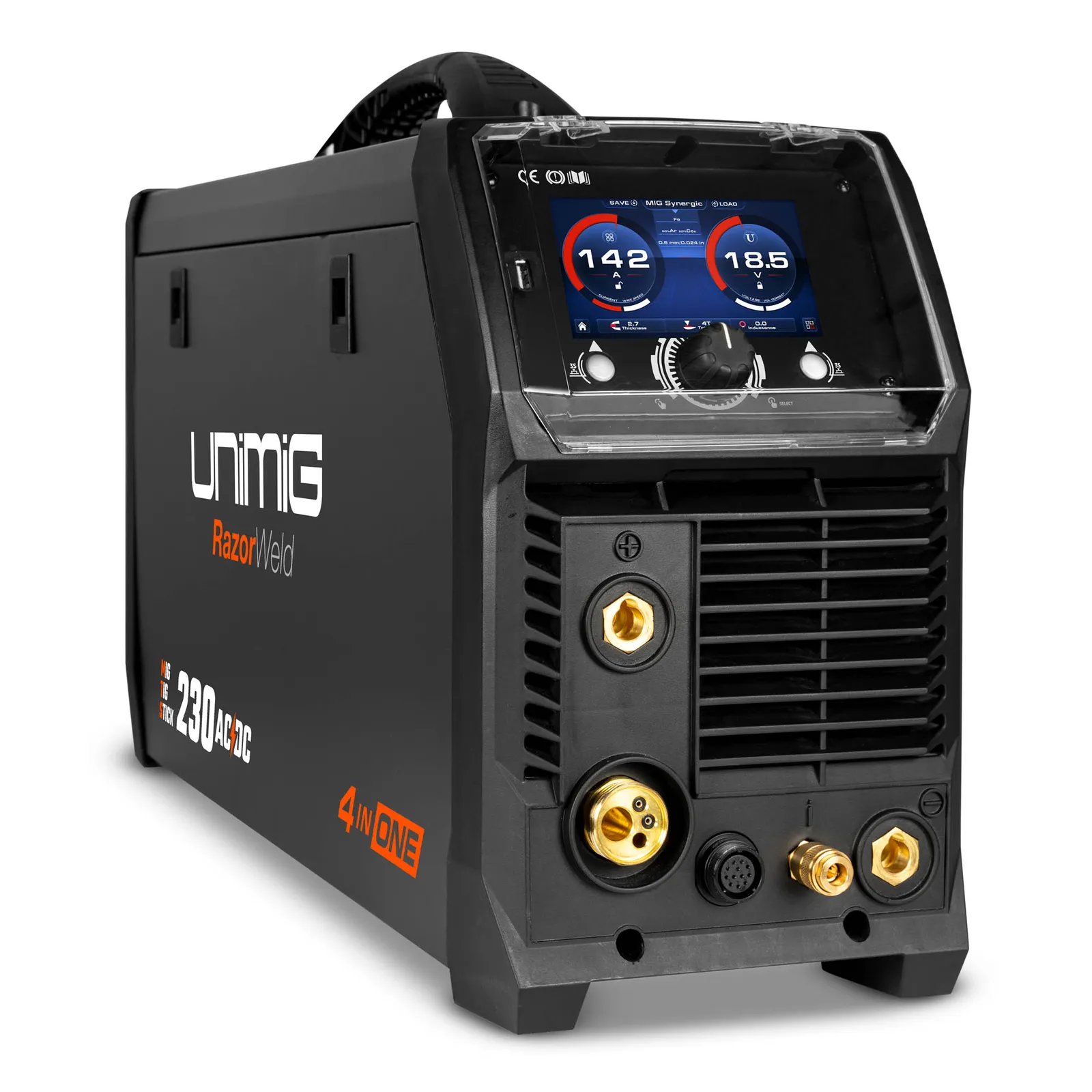

UNIMIG RAZOR MULTI 230 AC/DC MIG/TIG/STICK WELDER
($2,490.81 Incl GST)
In StockThe new RAZOR MULTI 230 AC/DC 4-in-1 is here. As the latest and greatest addition to our RAZOR line, this machine can do any kind of welding you need it to. MIG, High-Frequency AC & DC TIG, Pulse TIG, as well as STICK, no matter what you’ve got planned, the RAZOR MULTI 230 AC/DC can do it.
Key Features:
• True 4 IN 1 Multi Process
• 100+ Synergic Programs
• 5" LCD Screen
• 10A / 15A Compatibility
AC/DC High-Frequency TIG
TIG weld aluminium without issues with AC. High-Frequency TIG (H/F TIG) gives you more control when starting or stopping the arc and reduces the risk of contaminating the tungsten or the weld. The RAZOR MULTI 230 AC/DC can also Pulse TIG in both AC & DC.
DUAL-PLUG COMPATIBILITY (10A & 15A)
Connect to any 10A or 15A outlet for even greater versatility. The machine comes plugged with a 15A plug, so to connect to a 10A outlet simply attach the supplied conversion lead to your machine and change your output mode on the machine. In 10A mode, the output is limited to 200A, and the duty cycle is limited to 10% at 200A.
Power Factor Correction (PFC)
PFC gives you maximum electrical efficiency and automatically compensates for any voltage fluctuation.
MIG Smart-Set
Setting up for a weld has never been easier, just set your wire, gas, joint type and material thickness and you’re ready to weld!
Complete MIG Weld Cycle Control
Get complete control over your MIG welds with a full set of adjustable parameters. It comes with the standard settings like as pre- and post-gas flow, arc ignition speed, and burnback. Plus it also includes more advanced features, like Arc Start and Crater Fill, for full control over the beginning and end of your welds.
Geared Wire Drive
This machine features a geared roller drive unit, providing consistent and smooth wire feed, and it helps when using longer MIG torches.
TIG Smart-Set
The easiest way to set up for a TIG weld, simply set your filler material, joint type, and material thickness and you’re good to go!
Mix AC/DC
Mixed AC/DC welding is the combination of TIG AC and TIG DC- in one weld. Mixed AC/DC gives you faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.
Heat Control Trigger (HCT) Mode
When using the Heat Control Trigger Mode lets you set a base current, which you can switch to at any time during a weld by pressing the trigger button. Heat Control Trigger Mode is great for manual heat input control as you go.
PULSE MMA (STICK)
Pulse MMA (STICK) welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion.
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single Phase
SUPPLY PLUG
15 AMP (15A to 10A Conversion Lead Included)
Ieff (A)
9.4 / 15
RATED OUTPUT
25A/15.3V-200A/24V (10A) 25A/15.3V-230A/25.5V (15A)
PROTECTION CLASS
IP21
INSULATION CLASS
H
MINIMUM GENERATOR (kVA)
8.5 (10A) / 10 (15A)
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper.
| SKU | U11004K |
| Barcode # | 9333521030982 |
