Warrior 500i PLANT CC/CV,380-415V AIR, RobustFeed Feed PRO
($15,331.16 Incl GST)
In StockWarrior 500i CC/CV with Robust Feed Pro – OS
- Comes with Robust Feed Pro – OS, Trolley, Cables, Regulator & Mig Torch
- Multi-Process – MIG/TIG/Stick/Gouging
- Designed to be durable & rugged
- 500amps @ 60% Duty Cycle
- Easy to use, intuitive user interface
- The ESAB Warrior 500i brings the outstanding arc performance and energy savings you expect from an inverter. Along with increased energy efficiency and more power from a lighter, smaller, and more portable unit, Warrior provides the simple functionality welders want at a competitive price.
- Perfect for long runs across a variety of applications and delivers 500amps @ 60% Duty Cycle. Warrior has been designed to be durable and rugged, with an IP23 rating for outdoor and indoor use in rough environment.
- Easy-to-use, clear and intuitive user interface for everyone to get started quickly, including glove-friendly knobs make adjustments quick and easy.
UNRIVALED PORTABILITY.

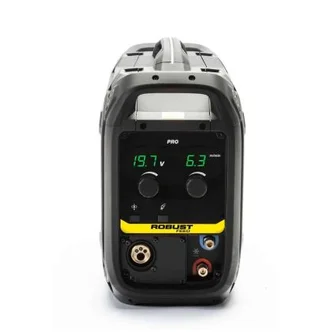

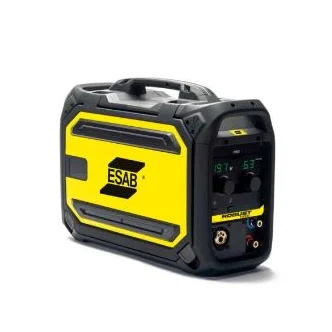

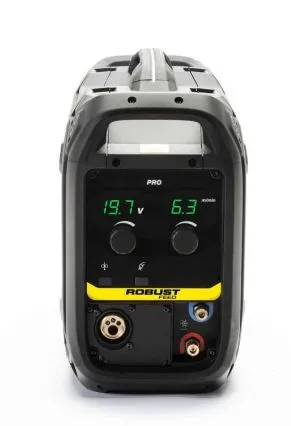

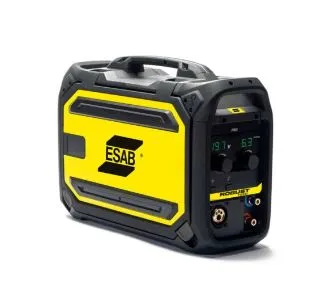

- Robust Feed Pro – OS has three comfortable handles (all are crane certified) and two additional lifting points for best-in-class portability and maneuverability, making it easy to lift and carry through confined spaces and around obstacles.
- Rounded edges and special high durability wear surfaces let you drag it anywhere without catching on other objects. The optional flat and vertical wheel kits and trolley integration allow for even greater mobility. The new design can handle power source cables up to 90 metres long, so you will always get to where you need to weld – in the shop or the field.
UNMATCHED PERFORMANCE

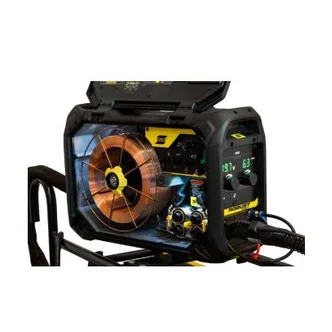

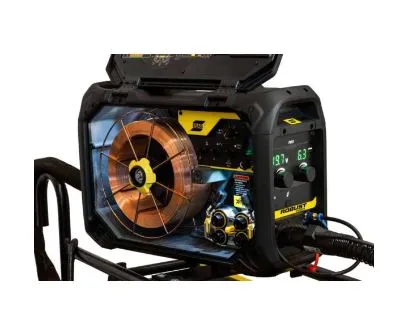

- The new precisely crafted aluminium drive stand feeds solid wire up to 2.0mm and cored up to 2.4mm at speeds of 0.8–25.0m/min. When changing the spool, you can feed the new wire without opening the drive stand. When it comes to power, Robust Feed Pro – OS easily handles 550A at 50% duty cycle, 500A at 60% duty cycle, and 400 A at 100%, enabling productivity that few other portable feeders can.
Package Includes:
- Warrior 500i CC/CV – 0465 350 885
- Robust Feed Pro – OS – 0445 800 883

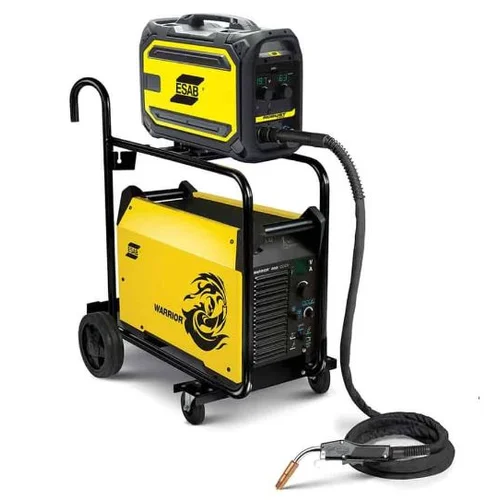

- Trolley (Robust Feed/Warrior Feed) – 0349 313 450
- INTERCONN SET 10m/A 70m – 0459 836 882
- Interconnection Strain Relief Kit – 0446 050 880
- Tweco No.4 with Euro Connection, 4.5m – OTWX415/3545
- REG CMT 250 ARG 55LPM 2 – 201017
- KIT CONN 5/8UNRH-5MM HO – 308689
Mains Supply, VAC, 3 ph 50/60Hz
380-400-415, +/-10%
Mains cable, Ø mm2
4x6
Fuse, Motor Start Type or Circuit Breaker Type C, A
32
Maximum Load
100% duty cycle A/V, 3ph: 400/36 | 60% duty cycle A/V, 3ph: 500/40
Current Range
MIG/FCAW: 16-500A | Stick (MMAW): 16-500A | TIG: 5-500A
Open Circuit Voltage
78V
Idle Power
120W
Efficiency at Max. Current
88%
Enclosure class
IP23
Operating Temperature
-10 to +40°C
Robust Feed Pro - OS: Input Voltage
42 VAC
Robust Feed Pro - OS: Welding Output
550A @ 50%
500A @ 60%
400A @ 100%
Robust Feed Pro - OS: Wire Dimensions
Mild Steel: 0.6-2.0mm
Stainless Steel: 0.6-1.6mm
Cored Wire: 0.9-2.4mm
Aluminium: 0.9-1.6mm
Robust Feed Pro - OS: Wire Feed Speed
0.8-25.0 m/min
Robust Feed Pro - OS: Wire Spool Capacity
20kg
Robust Feed Pro - OS: Max Spool Diameter
300mm
Robust Feed Pro - OS: Operating Temperature
Robust Feed Pro - OS: Protection Class
IP44
Robust Feed Pro - OS: Certification Mark (standards)
CE
Robust Feed Pro - OS: Dimensions
595L x 250W x 430H mm
Robust Feed Pro - OS: Weight
16.8kg
SKU | W1009760 |
